Digital datasets from the 2020 M6.5 Monte Cristo Range earthquake, Nevada
Summary:

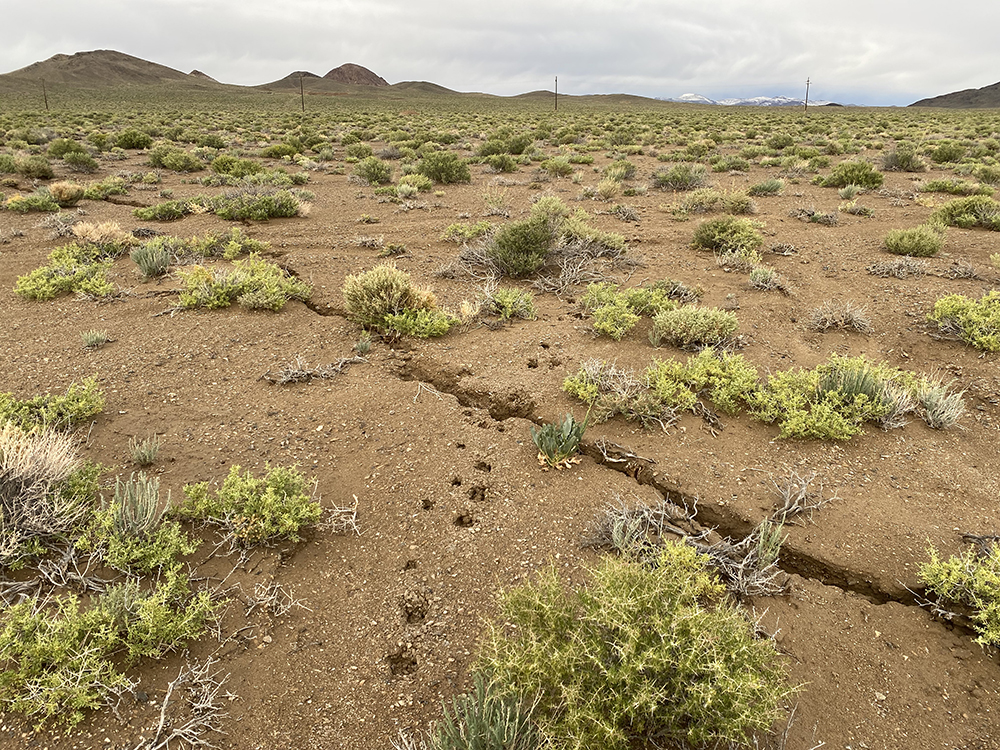

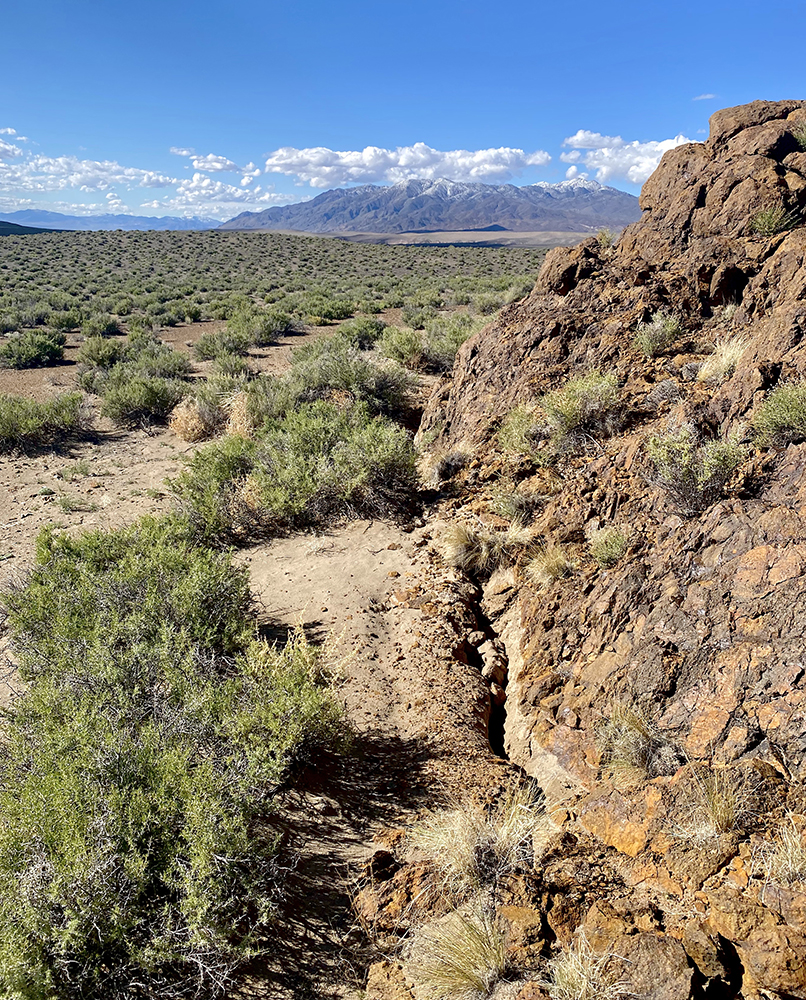

The 15 May 2020, M6.5 Monte Cristo Range earthquake was the largest earthquake in Nevada in over 66 years and occurred in a sparsely populated area of western Nevada about 74 km southeast of the town of Hawthorne. The earthquake produced surface rupture distributed across a 28-km-long zone along the eastward projection of the Candelaria fault in the Mina deflection of the central Walker Lane. Post-event field surveys mapped surface ruptures and measured displacements, which reached up to ~20 cm of oblique slip. Additional detailed mapping was completed using centimeter-resolution orthomosaics generated from Uncrewed Aerial Vehicle surveys. The rupture observations and displacement data are compiled into this 1:14,000-scale map, data tables, and accompanying digital datasets. The rupture consists of two distinct deformational domains roughly separated by U.S. Highway 95: ENE-trending ruptures with normal and left-oblique displacements in the western domain, and N- to NNE-trending ruptures with normal and right-oblique displacement in the eastern domain. The complex pattern of surface rupture is consistent with the projections of mapped bedrock and Quaternary faults in the area and illustrates the kinematics of slip partitioning at the junction of variably oriented structures in the shallow subsurface. The complete rupture map, accompanying report, and geospatial data can be downloaded below.
Surface rupture map and displacement measurements from the 2020 M6.5 Monte Cristo Range earthquake, Nevada:
Surface Rupture Map of the 2020 M6.5 Monte Cristo Range Earthquake, M190 Sheet 1 of 2
Surface Rupture Map of the 2020 M6.5 Monte Cristo Range Earthquake, M190 Sheet 2 of 2
Surface Rupture Map of the 2020 M6.5 Monte Cristo Range Earthquake, M190 Accompanying Text
Field Offset Measurements from the 2020 M6.5 Monte Cristo Range earthquake, Table 1
Geospatial rupture data:
m190_map_package.mpk – Map package of rupture data for Esri ArcMap
MonteCristoRangeEarthquake.kmz – .kmz file of rupture data for viewing in Google Earth
A GIS zip file of all data is also available for free download from the NBMG shopping cart.
Earthquake data from the Nevada Seismic Network can be found at the Nevada Seismological Laboratory (NSL) website: http://www.seismo.unr.edu/Earthquake.
